Product Summary
The AM29LV160DB-90EC is a 16 Mbit, 3.0 Volt-only Flashmemory organized as 2,097,152 bytes or 1,048,576words. The AM29LV160DB-90EC offers access times of 70, 90, and 120 ns,allowing high speed microprocessors to operate with-out wait states. The AM29LV160DB-90EC requires only a single 3.0 volt power sup-ply for both read and write functions.The AM29LV160DB-90EC is entirely command set compatiblewith the JEDEC single-power-supply Flash stan-dard.
Parametrics
AM29LV160DB-90EC absolute maximum ratings: (1)Storage TemperaturePlastic Packages:–65℃ to +150℃; (2)Ambient Temperaturewith Power Applied:–65℃ to +125℃; (3)Voltage with Respect to Ground VCC(Note 1):–0.5V to +4.0V; (4)A9, OE#, and RESET# (Note 2):–0.5V to +12.5V; (5)All other pins (Note 1):–0.5V to VCC+0.5V; (6)Output Short Circuit Current (Note 3): 200mA.
Features
AM29LV160DB-90EC OPERATING RANGES: (1)Commercial (C) Devices Ambient Temperature:0℃ to +70℃;(2)Industrial (I) Devices Ambient Temperature (TA):40℃ to +85℃; (3)VCC Supply Voltages VCC for all devices:2.7 V to 3.6 V.

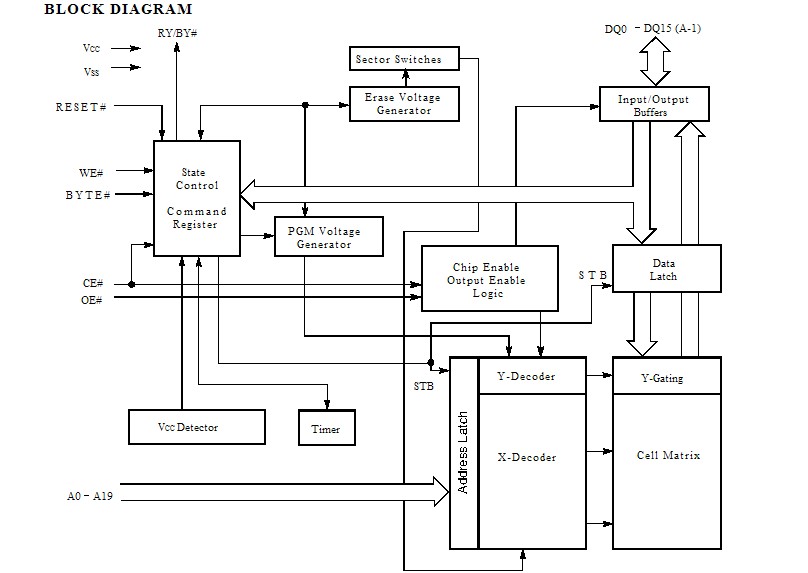

Diagrams
 |
