Product Summary

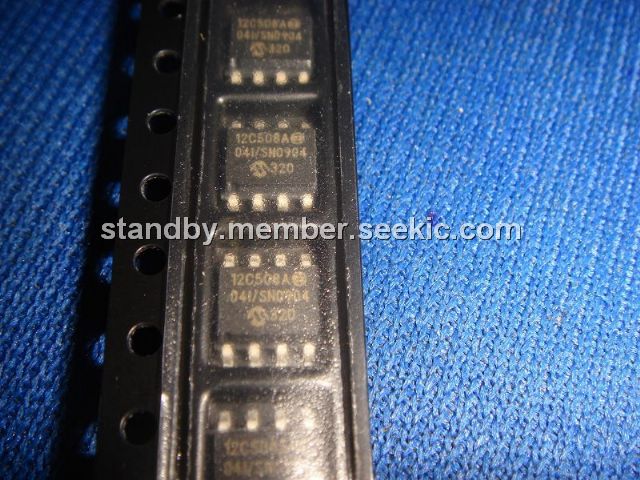

The 12C508A04I-SN is an 8-Bit CMOS Microcontroller. The 12C508A04I-SN employs a RISC architecture with only 33 single word/single cycle instructions. All instructions are single cycle (1 ms) except for program branches which take two cycles. The 12C508A04I-SN delivers performance an order of magnitude higher than its competitors in the same price category. The 12-bit wide instructions are highly symmetrical resulting in 2:1 code compression over other 8-bit microcontrollers in its class. The easy to use and easy to remember instruction set reduces development time significantly.
Parametrics
12C508A04I-SN absolute maximum ratings: (1)Ambient Temperature under bias: -40℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: 0 to +7.5 V; (4)Voltage on MCLR with respect to VSS: 0 to +14 V; (5)Voltage on all other pins with respect to VSS: -0.6 V to (VDD + 0.6 V); (6)Total Power Dissipation: 700 mW; (7)Max. Current out of VSS pin: 200 mA; (8)Max. Current into VDD pin: 150 mA; (9)Input Clamp Current, IIK (VI < 0 or VI > VDD): ±20 mA; (10)Output Clamp Current, IOK (VO < 0 or VO > VDD): ±20 mA; (11)Max. Output Current sunk by any I/O pin: 25 mA; (12)Max. Output Current sourced by any I/O pin: 25 mA; (13)Max. Output Current sourced by I/O port (GPIO): 100 mA; (14)Max. Output Current sunk by I/O port (GPIO): 100 mA.
Features
12C508A04I-SN features: (1)Only 33 single word instructions to learn; (2)All instructions are single cycle (1 ms) except for program branches which are two-cycle; (3)Operating speed: DC - 4 MHz clock input; DC - 1 ms instruction cycle; (4)12-bit wide instructions; (5)8-bit wide data path; (6)Seven special function hardware registers; (7)Two-level deep hardware stack; (8)Direct, indirect and relative addressing modes for data and instructions; (9)Internal 4 MHz RC oscillator with programmable calibration; (10)In-circuit serial programming.
Diagrams
