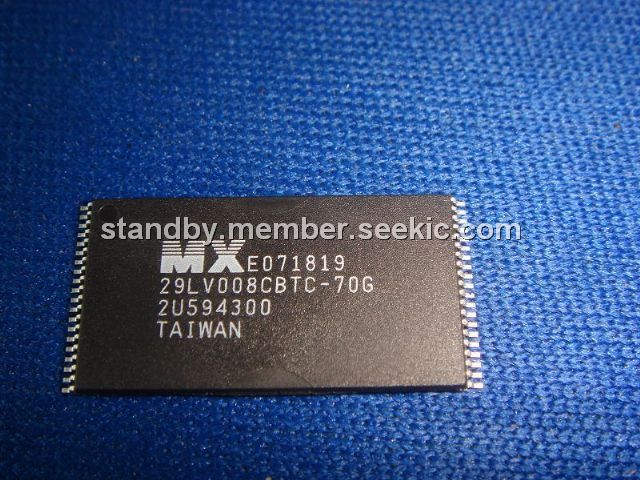

29LV008CBTC-70G

Product Summary

The 29LV008CBTC-70G is a 8-mega bit Flash memory organized as 1M bytes of 8 bits. MXIC’s Flash memories offer the most cost-effective and reliable read/write non-volatile random access memory. The 29LV008CBTC-70G is packaged in 40-pin TSOP. It is designed to be reprogrammed and erased in system or in standard EPROM programmers. The standard 29LV008CBTC-70G offers access time as fast as 55ns, allowing operation of high-speed microprocessors without wait states. To eliminate bus contention, the 29LV008CBTC-70G has separate chip enable (CE#) and output enable (OE#) controls.

Parametrics

29LV008CBTC-70G absolute maximum ratings: (1)Storage Temperature Plastic Packages: -65℃ to +150℃; (2)Ambient Temperature with Power Applied: -65℃ to +125℃; (3)Voltage with Respect to Ground VCC: -0.5 V to +4.0 V; (4)A9, OE#, and RESET#: -0.5 V to +12.5 V; (5)All other pins: -0.5 V to VCC +0.5 V; (6)Output Short Circuit Current: 200 mA.

Features

29LV008CBTC-70G features: (1)Extended single - supply voltage range 2.7V to 3.6V; (2)1,048,576 x 8; (3)Single power supply operation: 3.0V only operation for read, erase and program operation; (4)Fast access time: 55R/70/90ns; (5)Fully compatible with MX29LV008BT/BB device; (6)Low power consumption, 20mA maximum active current; 0.2uA typical standby current; (7)Command register architecture, Byte Programming (7us typical); Sector Erase (Sector structure 16K-Bytex1, 8K-Bytex2, 32K-Bytex1, and 64K-Byte x15); (8)Auto Erase (chip & sector) and Auto Program, Automatically erase any combination of sectors with Erase Suspend capability; Automatically program and verify data at specified address; (9)Erase suspend/Erase Resume, Suspends sector erase operation to read data from, or program data to, any sector that is not being erased, then resumes the erase; (10)Status Reply, Data# Polling & Toggle bit for detection of program and erase operation completion; (11)Ready/Busy# pin (RY/BY#), Provides a hardware method of detecting program or erase operation completion; (12)Sector protection, Hardware method to disable any combination of; (13)sectors from program or erase operations; Temporary sector unprotect allows code changes in previously locked sectors; (14)100,000 minimum erase/program cycles; (15)Latch-up protected to 100mA from -1V to VCC+1V; (16)Package type: 40-pin TSOP; (17)Compatibility with JEDEC standard: Pinout and software compatible with single-power supply Flash; (18)20 years data retention.

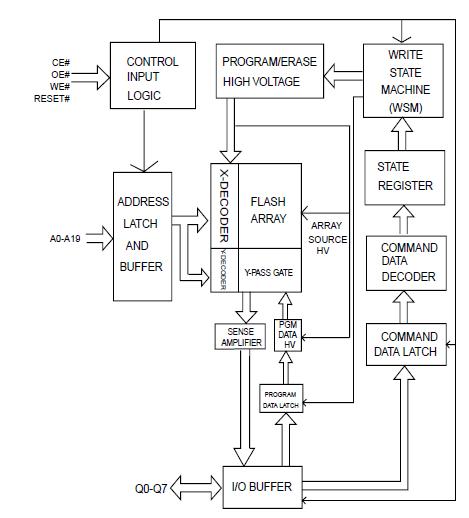

Diagrams
