Product Summary

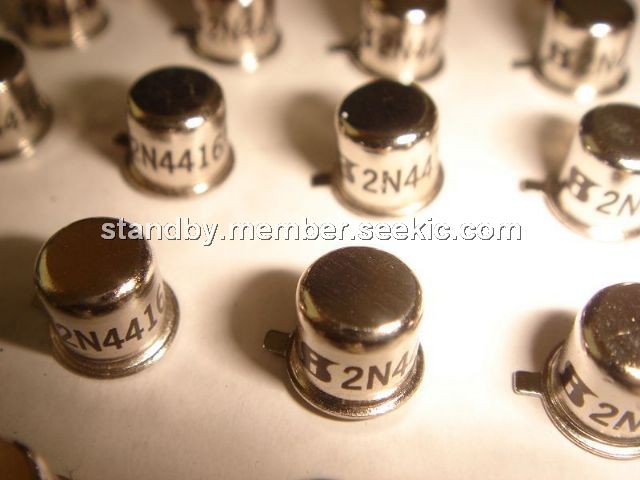

The 2N4416 is an n-channel JFET, designed to provide high-performance amplification at high frequencies. The TO-206AF (TO-72) hermetically-sealed package is available with full military processing (see Military Information.) The TO-236 (SOT-23) package provides a low-cost option and is available with tape-and-reel options (see Packaging Information). For similar products in the TO-226AA (TO-92) package, see the J304/305 datasheet.

Parametrics

2N4416 absolute maximum ratings: (1)Gate-Drain, Gate-Source Voltage: (2N4416A): 35 V; (2)Gate Current: 10 mA; (3)Lead Temperature: 300℃; (4)Storage Temperature: (2N Prefix): -65 to 200℃; (SST Prefix): -65 to 150℃; (5)Operating Junction Temperature: -55 to 150℃; (6)Power Dissipation: (2N Prefix): 300 mW; (SST Prefix)b: 350 mW.

Features

2N4416 features: (1)Excellent High-Frequency Gain: 2N4416/A, Gps 13 dB (typ) @ 400 MHz; (2)Very Low Noise: 3 dB (typ) @ 400 MHz; (3)Very Low Distortion; (4)High AC/DC Switch Off-Isolation.
