Product Summary

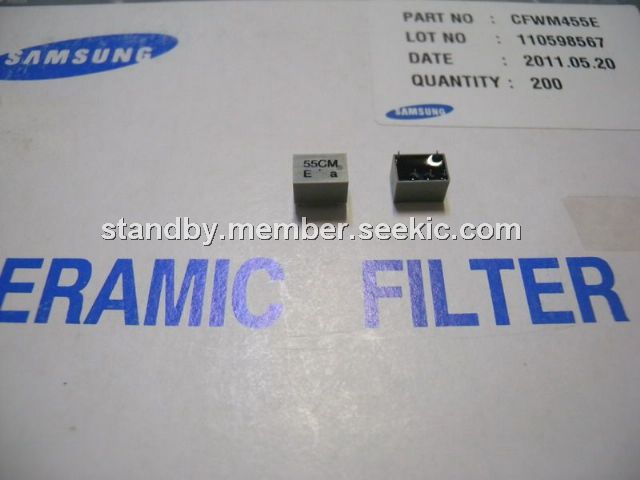

The CFWM455E is a ceramic filter.

Parametrics

CFWM455E absolute maximum ratings: (1)6dB bandwidth min: ±7.5KHz; (2)Attenuation bandwidth: ±20KHz, 40dB; (3)Attenuation ±100KHz min: 23dB; (4)Insertion loss max: 8dB; (5)Input/potput inpedance: 1500ohms.

Features

CFWM455E features: (1)6dB bandwidth min: ±7.5KHz; (2)Attenuation ±100KHz min: 23dB; (3)Input/potput inpedance: 1500ohms.

Diagrams

CFWM455E block diagram
