Product Summary
The OPA627 is a fully-differential amplifier designed for driving high-performance audio analog-to-digital converter (ADC). It provides the highest audio quality, with very low noise and output drive characteristics optimized for this application. The OPA627’s excellent gain bandwidth of 180MHz and very fast slew rate of 50V/μs produce exceptionally low distortion. Very low input noise of 1.3nV/√Hz further ensures maximum signal-to-noise ratio and dynamic range. The applications of the OPA627 include audio adc driver, balanced line driver, balanced receiver, active filter, preamplifier.
Parametrics
OPA627 absolute maximum ratings: (1)Supply Voltage, ±VS: ±16.5V; (2)Input Voltage, VI: ±VS; (3)Output Current, IO: 150mA; (4)Differential Input Voltage, VID: ±3V; (5)Maximum Junction Temperature, TJ: 150℃; (6)Operating Free-Air Temperature Range: -40℃ to +85℃; (7)Storage Temperature Range, TSTG: -65℃ to +150℃; (8)ESD Ratings: Human Body Model: 1kV; (9)Charge Device Model: 500V; (10)Machine Model: 200V.
Features
OPA627 features: (1)Superior sound qualitY; (2)Ultra low distortion: 0.000022%; (3)Low noise: 1.3nV/√Hz; (4)High speed: Slew Rate: 50V/μs; Gain Bandwidth: 180MHz; (5)Fully differential architecture: Balanced Input and Output Converts Single-Ended Input to Balanced Differential Output; (6)Wide supply range: ±2.5V to ±16V; (7)Shutdown to conserve power.

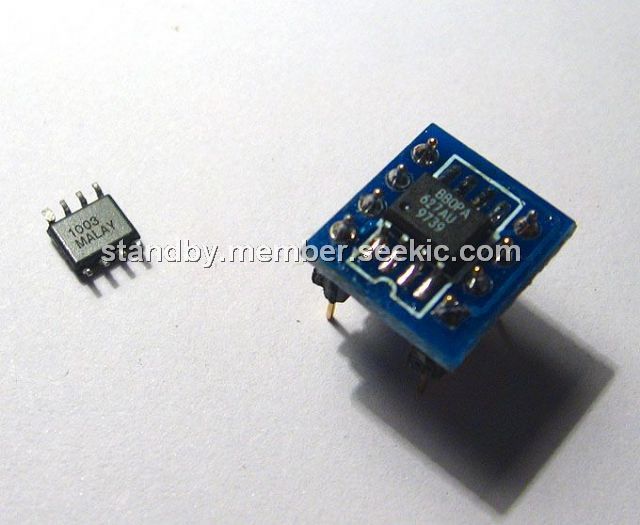

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OPA627 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
OPA627AM |
Texas Instruments |
High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp |
Data Sheet |
|
|
||||||||||||
|
OPA627AP |
Texas Instruments |
High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp |
Data Sheet |
|
|
||||||||||||
|
OPA627APG4 |
Texas Instruments |
High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp |
Data Sheet |
|
|
||||||||||||
|
OPA627AU |
Texas Instruments |
High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp |
Data Sheet |
|
|
||||||||||||
|
OPA627AU/2K5 |
Texas Instruments |
High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp |
Data Sheet |
|
|
||||||||||||
|
OPA627AU/2K5E4 |
Texas Instruments |
High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp |
Data Sheet |
|
|
||||||||||||
|
OPA627AUE4 |
Texas Instruments |
High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp |
Data Sheet |
|
|
||||||||||||
