Product Summary

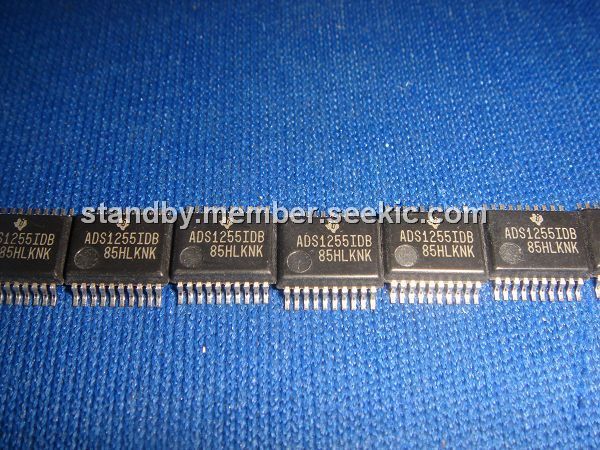

The ADS1255IDBT is a extremely low-noise, 24-bit analog-to-digital (A/D) converter. The ADS1255IDBT provides complete high-resolution measurement solutions for the most demanding applications. The converter is comprised of a 4th-order, delta-sigma (ΔΣ) modulator followed by a programmable digital filter. A flexible input multiplexer handles differential or single-ended signals and includes circuitry to verify the integrity of the external sensor connected to the inputs. The applications of the ADS1255IDBT include Weigh Scales, Scientific Instrumentation, Industrial Process Control, Medical Equipment, Test and Measurement.
Parametrics
ADS1255IDBT absolute maximum ratings: (1)AVDD to AGND: -0.3 to +6 V; (2)DVDD to DGND: -0.3 to +3.6 V; (3)AGND to DGND: -0.3 to +0.3 V; (4)Input Current: 100, Momentary mA; 10, Continuous mA; (5)Analog inputs to AGND: -0.3 to AVDD +0.3 V; (6)Digital inputs, DIN, SCLK, CS, RESET, SYNC/PDWN, XTAL1/CLKIN to DGND: -0.3 to +6 V; (7)D0/CLKOUT, D1, D2, D3 to DGND: -0.3 to DVDD +0.3 V; (8)Maximum Junction Temperature: +150℃; (9)Operating Temperature Range: -40 to +105℃; (10)Storage Temperature Range: -60 to +150℃; (11)Lead Temperature (soldering, 10s): +300℃.
Features
ADS1255IDBT features: (1)24 Bits, No Missing Codes; (2). All Data Rates and PGA Settings; (3)Up to 23 Bits Noise-Free Resolution; (4)±0.0010% Nonlinearity (max); (5)Data Output Rates to 30kSPS; (6)Fast Channel Cycling, 18.6 Bits Noise-Free (21.3 Effective Bits) at 1.45kHz; (7)One-Shot Conversions with Single-Cycle Settling; (8)Flexible Input Multiplexer with Sensor Detect, Four Differential Inputs; (9)Chopper-Stabilized Input Buffer; (10)Low-Noise PGA: 27nV Input-Referred Noise; (11)Self and System Calibration for All PGA Settings; (12)5V Tolerant SPI.-Compatible Serial Interface; (13)Analog Supply: 5V; (14)Digital Supply: 1.8V to 3.6V; (15)Power Dissipation, As Low as 38mW in Normal Mode; 0.4mW in Standby Mode.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADS1255IDBT |
Texas Instruments |
ADC (A/D Converters) 24 Bit 30kSPS Very Lo-Noise Delta-Sigma |
Data Sheet |
|
|
||||||||||||
|
ADS1255IDBTG4 |
Texas Instruments |
ADC (A/D Converters) 24 Bit 30kSPS Very Lo-Noise Delta-Sigma |
Data Sheet |
|
|
||||||||||||
