Product Summary

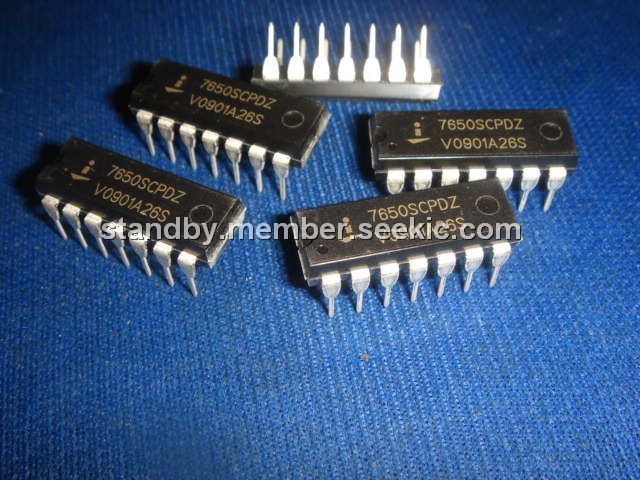

The 7650SCPDZ is a Super Chopper-Stabilized Amplifier. The 7650SCPDZ offers exceptionally low input offset voltage and is extremely stable with respect to time and temperature. It is a direct replacement for the industry-standard 7650SCPDZ offering improved input offset voltage, lower input offset voltage temperature coefficient, reduced input bias current, and wider common mode voltage range. All improvements are highlighted in bold italics in the Electrical Characteristics section. Critical parameters are guaranteed over the entire commercial temperature range.
Parametrics
7650SCPDZ absolute maximum ratings: (1)Supply Voltage (V+ to V-): 18V; (2)Input Voltage: (V+ +0.3) to (V- -0.3)V; (3)Voltage on Oscillator Control Pins: V+ to VDuration; (4)of Output Short Circuit: Indefinite; (5)Current to Any Pin: 10mA; (6)While Operating: 100μA; (7)Temperature Range: 0℃ to +70℃.
Features
7650SCPDZ features: (1)Guaranteed Max Input Offset Voltage for All Temperature Ranges; (2)Low Long-Term and Temperature Drifts of Input Offset Voltage; (3)Guaranteed Max Input Bias Current: 10pA; (4)Extremely Wide Common Mode Voltage Range: +3.5V to -5V; (5)Reduced Supply Current: 2mA; (6)Guaranteed Minimum Output Source/Sink Current; (7)Extremely High Gain: 150dB; (8)Extremely High CMRR and PSRR: 140dB; (9)High Slew Rate: 2.5V/μs; (10)Wide Bandwidth: 2MHz; (11)Unity-Gain Compensated; (12)Clamp Circuit to Avoid Overload Recovery Problems and Allow Comparator Use; (13)Extremely Low Chopping Spikes at Input and Output; (14)Improved, Direct Replacement for Industry-Standard ICL7650 and other Second-Source Parts; (15)Pb-Free Plus Anneal Available (RoHS Compliant).
