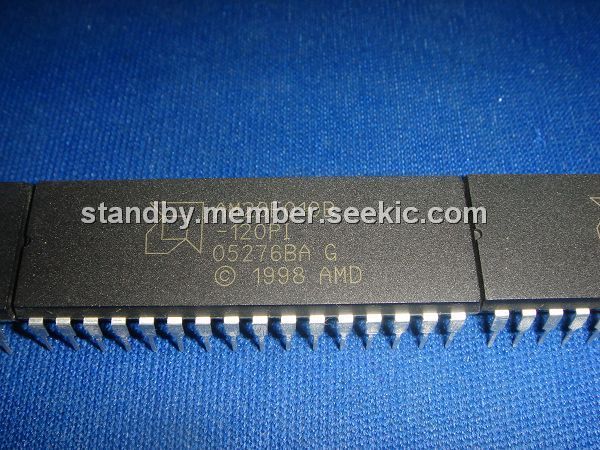

AM29F010B-120PI

Product Summary

The AM29F010B-120PI is a 1 Mbit, 5.0 Volt-only Flash memory organized as 131,072 bytes. The AM29F010B-120PI is offered in 32-pin PDIP, PLCC and TSOP packages. The byte-wide data appears on DQ0-DQ7. The device is designed to be programmed in-system with the standard system 5.0 Volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The device can also be programmed or erased in standard EPROM programmers. The AM29F010B-120PI is manufactured using AMD’s 0.32 μm process technology, and offers all the features.

Parametrics

AM29F010B-120PI absolute maximum ratings: (1)Storage Temperature Plastic Packages: -65℃ to +125℃; (2)Ambient Temperature with Power Applied: -55℃ to +125℃; (3)Voltage with Respect to Ground VCC: -2.0 V to +7.0 V; (4)A9: -2.0 V to +13.0 V; (5)All other pins: -2.0 V to +7.0 V; (6)Output Short Circuit Current: 200 mA.

Features

AM29F010B-120PI features: (1)Single power supply operation, 5.0 V ± 10% for read, erase, and program operations; Simplifies system-level power requirements; (2)Manufactured on 0.32 μm process technology, Compatible with Am29F010 and Am29F010A device; (3)High performance, 45 ns maximum access time; (4)Low power consumption, 12 mA typical active read current; 30 mA typical program/erase current; <1 μA typical standby current; (5)Flexible sector architecture, Eight 16 Kbyte sectors; Any combination of sectors can be erased; Supports full chip erase; (6)Sector protection, Hardware-based feature that disables/reenables program and erase operations in any combination of sectors; Sector protection/unprotection can be implemented using standard PROM programming equipment; (7)Embedded Algorithms, Embedded Erase algorithm automatically pre-programs and erases the chip or any combination of designated sector; Embedded Program algorithm automatically; (8)programs and verifies data at specified address; (9)Erase Suspend/Resume, Supports reading data from a sector not; (10)being erased; (11)Minimum 1 million erase cycles guaranteed per sector; (12)20-year data retention at 125℃, Reliable operation for the life of the system; (13)Package options, 32-pin PDIP; (14)Compatible with JEDEC standards, Pinout and software compatible with single-power-supply flash; Superior inadvertent write protection; (15)Data# Polling and Toggle Bits, Provides a software method of detecting program or erase cycle completion.

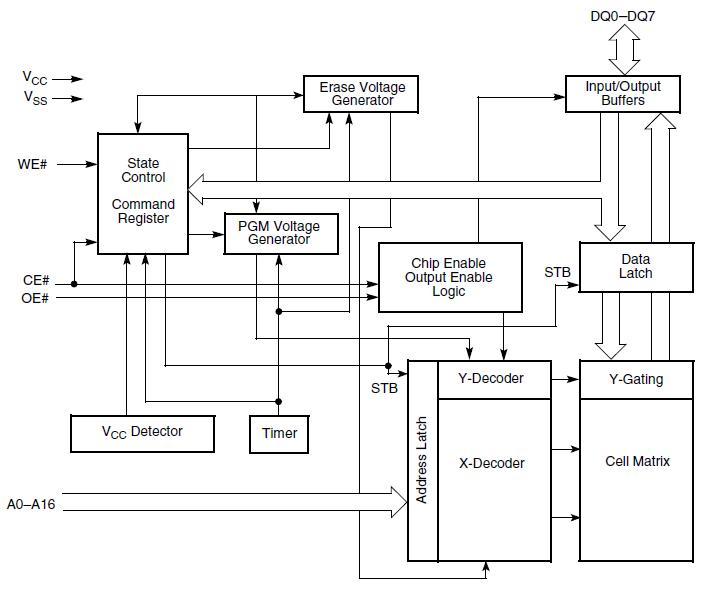

Diagrams
