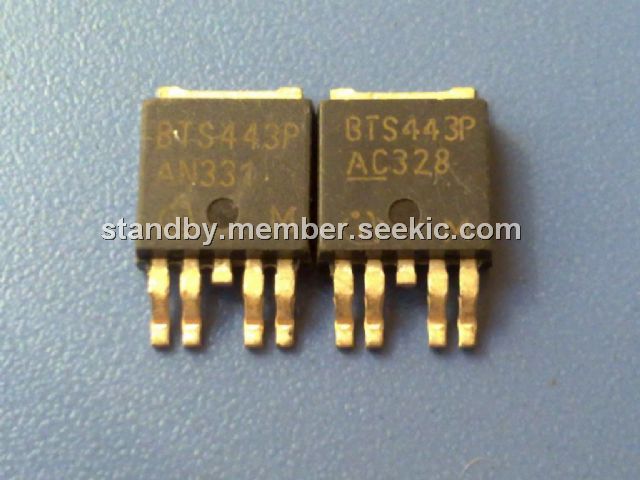

BTS443P

N channel vertical power FET, TO252-5, BTS443P, 36 V, 2 Ω, 42 W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.40~1.00

PartNumber:: BTS443P

Brand:: Infineon Technologies AG - Infineon | Pack: TO | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. chen's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-28

From Other Seller

Part Number:BTS443P
US $0.40 - 1.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The BTS443P is an N channel vertical power FET with charge pump, current controlled input and diagnostic feedback with load current sense. It is integrated in Smart SIPMOS chip on chip technology. The BTS443P is providing embedded protective functions of the BTS443P. Applications of the BTS443P are: Power switch with current sense diagnostic feedback for 12V and 24 V DC grounded loads, All types of resistive, capacitive and inductive loads (no PWM with inductive loads), Replaces electromechanical relays, fuses and discrete circuits.

Parametrics

BTS443P maximum ratings: (1)Supply voltage: Vbb 36 V; (2)Supply voltage for full short circuit protection: Tj=-40 to 150 ℃Vbb: 24 V; (3)Load dump protection VLoadDump = UA + Vs, UA = 13.5 V RI= 2 Ω, RL= 2.7 Ω, td= 200 ms, IN= low or high; (4)VLoad dump: 60 V; (5)Load current IL: self-limited A ; (6)Operating temperature range Tj: -40 to +150 ℃; (7)Storage temperature range Tstg: -55 to +150 ℃; (8)Power dissipation (DC) TC ≤ 25℃ Ptot 42 W; (9)Inductive load switch-off energy dissipation.

Features

BTS443P features: (1)Short circuit protection; (2)Current limitation; (3)Overload protection; (4)Thermal shutdown; (5)Overvoltage protection (including load dump); (6)Loss of ground protection; (7)Loss of Vbb protection (with external diode for charged inductive loads); (8)Very low standby current; (9)Fast demagnetisation of inductive loads; (10)Electrostatic discharge (ESD) protection; (11)Optimized static electromagnetic compatibility (EMC).
