Product Summary

The AD96687BQ is an ultrafast comparator. The AD96687BQ is a single comparator with 2.5 ns propagation delay. It features 50 ps propagation delay dispersion which is a particularly important characteristic of high-speed comparators. It is a measure of the difference in propagation delay under differing overdrive conditions. The applications of the AD96687BQ include High Speed Triggers, High Speed Line Receivers, Threshold Detectors, Window Comparators and Peak Detectors.

Parametrics

AD96687BQ absolute maximum ratings: (1)Positive Supply Voltage (+VS): 6.5 V; (2)Negative Supply Voltage (–VS): –6.5 V; (3)Input Voltage Range: ±5 V; (4)Differential Input Voltage: 5.5 V; (5)Latch Enable Voltage: –VS to 0 V; (6)Output Current: 30 mA; (7)Operating Temperature Range: -25℃ to +85℃; (8)Storage Temperature Range: -55℃ to +150℃; (9)Junction Temperature: 175℃; (10)Lead Soldering Temperature (10 sec): 300℃.

Features

AD96687BQ features: (1)Fast: 2.5 ns Propagation Delay; (2)Low Power: 118 mW per Comparator; (3)Packages: DIP, SOIC, PLCC; (4)Power Supplies: +5 V, –5.2 V; (5)Logic Compatibility: ECL; (6)50 ps Delay Dispersion.

Diagrams

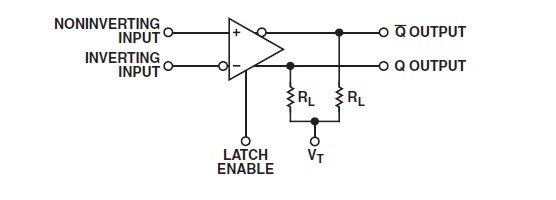

AD96687BQ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

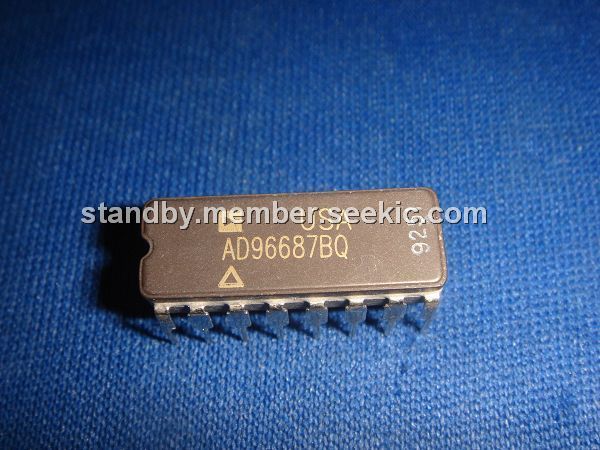

AD96687BQ
AD96687BQ


IC COMP DUAL 2.5NS 16-CDIP

Data Sheet

0-1: $7.53
1-25: $6.33
25-100: $5.82
100-250: $5.31
250-500: $4.96
500-1000: $4.56
