Product Summary

The LT1054CP is a bipolar, switched-capacitor voltage converter with regulator. The LT1054CP provides higher output current and significantly lower voltage losses than previously available converters. An adaptive-switch drive scheme optimizes efficiency over a wide range of output currents. Total voltage drop at 100-mA output current typically is 1.1 V. This applies to the full supply-voltage range of 3.5 V to 15 V. Quiescent current typically is 2.5 mA. The LT1054CP also provides regulation, a feature previously not available in switched-capacitor voltage converters. By adding an external resistive divider, a regulated output can be obtained.

Parametrics

LT1054CP absolute maximum ratings: (1)Supply voltage,VCC: 16 V; (2)Input voltage range,VI: FB/SD: 0 V to VCC; OSC: 0 V to Vref; (3)Junction temperature, TJ: 125℃; (4)Package thermal impedance,θJA: 57℃/W; (5)Storage temperature range,Tstg: -55 to 150℃.

Features

LT1054CP features: (1)Output Current: 100 mA; (2)Low Loss: 1.1 V at 100 mA; (3)Operating Range: 3.5 V to 15 V; (4)Reference and Error Amplifier for Regulation; (5)External Shutdown; (6)External Oscillator Synchronization; (7)Devices Can Be Paralleled; (8)Pin-to-Pin Compatible With the LTC1044/7660.

Diagrams

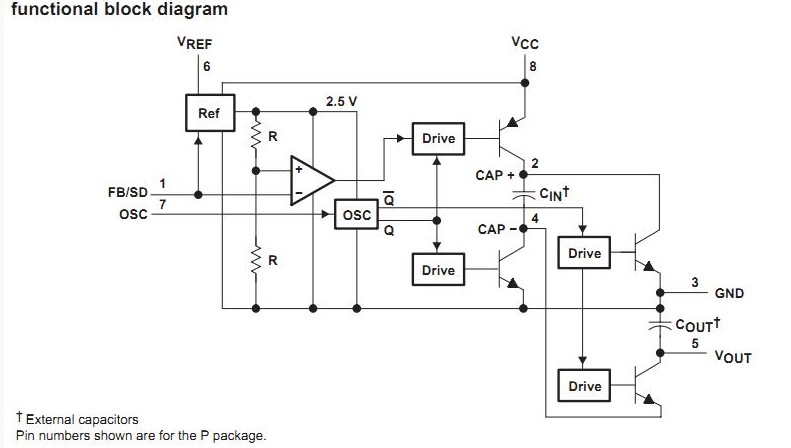

LT1054CP block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LT1054CP
LT1054CP
Texas Instruments
Charge Pumps Bipolar Regulated V
Data Sheet
0-1: $1.67
1-25: $1.45
25-100: $1.23
100-250: $1.11
LT1054CPE4
LT1054CPE4
Texas Instruments
Charge Pumps Switched-Capacitor Voltage Converter
Data Sheet
0-1: $1.91
1-25: $1.53
25-100: $1.40
100-250: $1.26
