Product Summary

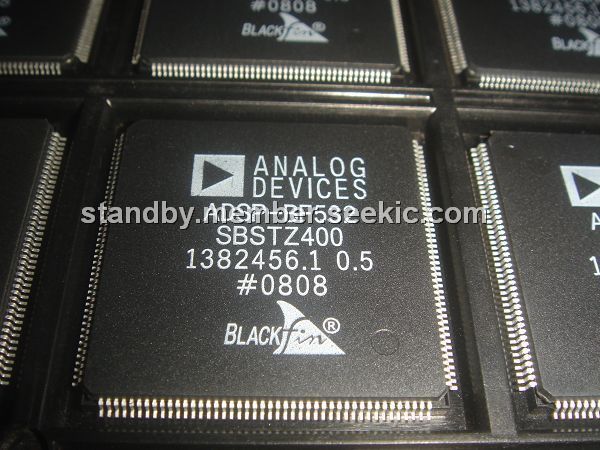

The ADSP-BF532SBST400 is a Blackfin Embedded Processor. The ADSP-BF532SBST400 is a member of the Blackfin family of products, incorporating the Analog Devices/Intel Micro Signal Architecture (MSA). Blackfin processors combine a dual-MAC state-of-the-art signal processing engine, the advantages of a clean, orthogonal RISC-like microprocessor instruction set, and single-instruction, multiple-data (SIMD) multimedia capabilities into a single instruction-set architecture. The ADSP-BF532SBST400 is completely code and pin compatible, differing only with respect to their performance and on-chip memory.
Parametrics
ADSP-BF532SBST400 absolute maximum ratings: (1)Internal (Core) Supply Voltage (VDDINT): -0.3 V to +1.4 V; (2)External (I/O) Supply Voltage (VDDEXT): -0.3 V to +3.8 V; (3)Input Voltage: -0.5 V to 3.6 V; (4)Output Voltage Swing: –0.5 V to VDDEXT+0.5 V; (5)Load Capacitance: 200 pF; (6)ADSP-BF533 Core Clock (CCLK): 600 MHz; (7)ADSP-BF532/BF531 Core Clock (CCLK): 400 MHz; (8)Peripheral Clock (SCLK): 133 MHz; (9)Storage Temperature Range: -65℃ to +150℃; (10)Junction Temperature Under Bias: 125℃.
Features
ADSP-BF532SBST400 features: (1)Up to 600MHz high performance Blackfin processor Two 16-bit MACs, two 40-bit ALUs, four 8-bit video ALUs, 40-bit Shifter; RISC-like register and instruction model for ease of programming and compiler-friendly support; Advanced debug, trace, and performance monitoring; (2)0.8 V to 1.2 V core VDD with on-chip voltage regulation; (3)3.3 V and 2.5 V tolerant I/O; (4)160-ball mini-BGA, 169-ball lead free PBGA, and 176-lead LQFP packages.

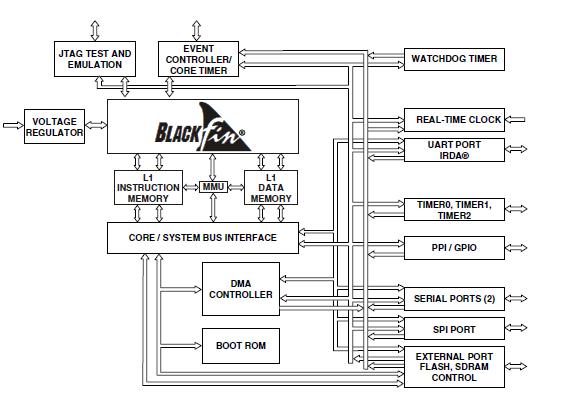

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADSP-BF532SBST400 |
Analog Devices Inc |
IC DSP CTLR 16BIT 400MHZ 176LQFP |
Data Sheet |
Negotiable |
|
||||||||||||||
