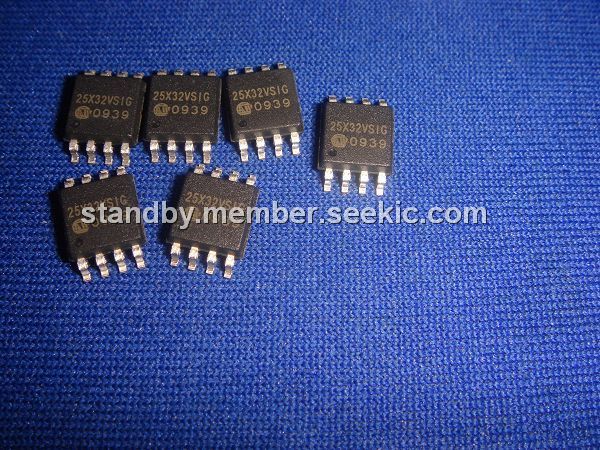

Product Summary

The 25X32VSIG is a 32M-bit Serial Flash memory. The 25X32VSIG provides a storage solution for systems with limited space, pins and power. The 25X32VSIG offers flexibility and performance well beyond ordinary Serial Flash devices. It is ideal for code download applications as well as storing voice, text and data. The device operates on a single 2.7V to 3.6V power supply with current consumption as low as 5mA active and 1μA for power-down. The device is offered in space-saving packages.

Parametrics

25X32VSIG absolute maximum ratings: (1)Supply Voltage, VCC: -0.6 to +4.0 V; (2)Voltage applied to any Pin, VIO: -0.6 to VCC +0.4 V; (3)Transient Voltage on any Pin, VIOT: -2.0V to VCC +2.0 V; (4)Storage Temperature, TSTG: -65 to +150℃; (5)Electrostatic Discharge Voltage, VESD: -2000 to +2000 V.

Features

25X32VSIG features: (1)Family of Serial Flash Memories: 32M-bit / 4M-byte (4,194,304); 256-bytes per programmable page; Uniform 4K-byte Sectors / 64K-byte Blocks; (2)SPI with Single or Dual Outputs, Clock, Chip Select, Data I/O, Data Out; Optional Hold function for SPI flexibility; (3)Data Transfer up to 150M-bits / second, Clock operation to 75MHz; Fast Read Dual Output instruction; Auto-increment Read capability; (4)Flexible Architecture with 4KB sectors, Sector Erase (4K-bytes); Block Erase (64K-byte); Page program up to 256 bytes <2ms; Up to 100,000 erase/write cycles; 20-year retention; (5)Low Power Consumption, Wide Temperature Range, Single 2.7 to 3.6V supply; 5mA active current, 1μA Power-down (typ); -40℃ to +85℃ operating range; (6)Software and Hardware Write Protection, Write-Protect all or portion of memory; Enable/Disable protection with /WP pin; Top or bottom array protection; (7)Space Efficient Packaging, 8-pin SOIC 208-mil.

Diagrams

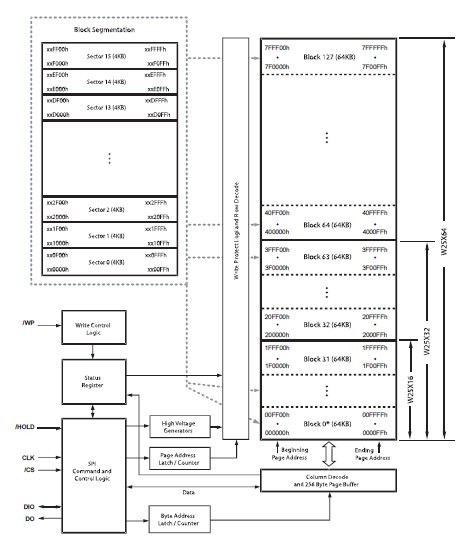

25X32VSIG block diagram
