Product Summary

The OPA627AM is a kind of Difet operational amplifier which provides a new level of performance in a precision FET op amp. It has lower noise, lower offset voltage, and much higher speed. It is useful in a broad range of precision and high speed analog circuitry. The OPA627AM is fabricated on a high-speed, dielectrically-isolated complementary NPN/PNP process. The OPA627AM operates over a wide range of power supply voltage. The applications of the OPA627SM are: (1)precision instrumentation; (2)fast data acquisition; (3)dac output amplifier; (4)optoelectronics; (5)sonar, ultrasound; (6)high-impedance sensor amps; (7)high-performance audio circuitry; (8)active filters.

Parametrics

OPA627SM absolute maximum ratings: (1)supply voltage:±18V;(2)input voltage range:+VS+2V to -VS-2V;(3)differential input range:total VS+4V;(4)power dissipation:1000 mW;(5)operating temperature:-40℃ to +125℃;(6)storage temperature:-40℃ to +125℃;(7)junction temperature:+150℃;(8)lead temperature (soldering, 10s):+300℃;(9)lead temperature SOlC (soldering, 3s):+260℃.

Features

OPA627SM features:(1)low Vos:100 uV max.;(2)low drift:0.8uV/℃ max.;(3)low Ib:5 pA max.;(4)unity-gain stable.And it can be used in precision instrumentation,fast data acquisition,DAC output amplifier,optoelectronics,sonar and ultrasound,high-impedance sensor amps,high-preformance audio circuity and active filters.

Diagrams

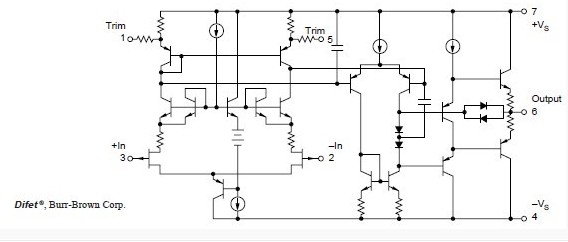

OPA627SM circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OPA627SM
OPA627SM
Texas Instruments
High Speed Operational Amplifiers Prec High-Speed Difet Oper Amp
Data Sheet
0-1: $51.33
1-25: $45.83
25-100: $43.30
